Screen Formats
|
True 16:9 Widescreen, Switchable for 4:3 |
Recording Format
|
DIGITAL BETACAM
|
Reviews
|

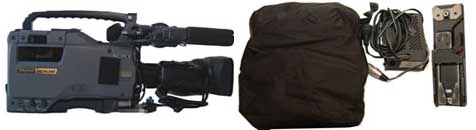

| SONY DIGITAL BETACAM CAMCORDER incorporates a switchable 16:9/4:3 620K IT CCD imager, advanced digital signal processing, and 12-bit technology. The result is much improved picture quality in the areas of contrast / highlight handling, and a high S/N ratio of around 63dB. Digital Betacam is the recognised industry format of choice for high quality acquisition and production. This new generation digital camcorder is supported by an impressive range of operational enhancements and innovative options for the serious digital cinematographer. |
|
Features
Widescreen CCDs -Three 2/3-inch 620K Widescreen Power HAD IT CCDs producing high quality images in both 16:9 and 4:3 aspect ratios.
12-bit A/D conversion 12-bit analogue to digital conversion technology resulting in a high S/N ratio and improved highlight and low light capability.
16:9/4:3 Operation - Switchable between widescreen and conventional aspect ratios to meet changing production demands.
Advanced DSP - Greater operational flexibility with features such as skin tone iris; skin tone detail; and wide dynamic range.
TrueEye Process - Manages video signal data according to brightness, hue and saturation reproducing colours as faithfully as the human eye.
Knee Saturation - Works with TruEye to maintain accurate colorimetry above the knee point.
High Sensitivity - Ideal for low light environments. A Turbo Gain function quickly raises the gain level to +48dB at the touch of a button.
Electrical Colour Temperature - Control function allows the image to warmed-up or cooled-down from within the camera.
Auto Tracing White Balance - Rapidly adjusts white balance when lighting conditions change (moving from indoors to outdoors).
Gamma/Black Gamma Control - Gives more creative control to how contrast is controlled by camera system. Telecine-like film transfer response curve.
Setup Card Stores setup parameters on a removable Setup Card. Ideal for multiple camera setup and maintaining a look on continuing projects.
Simple Menu Control A rotary control knob gives easy access to various menu items. User menu can be customised to include only selected items.
Shot Data Recording Allows scenes to be logged for more efficient post production. Optical Filters - Dual optical filter wheel with Neutral Density (Clear, 1/8, 1/16, 1/64) and Correction (Cross, 3200K, 4300K 63000K) selections.
Direct Colour Playback - Provides full colour playback directly from the camcorder. Fitted with 5-pin XLR plug for stereo audio output.
Lithium-ion Battery - Fits directly to V-shoe attachment of the camcorder giving around 110 minutes operation using a fully charged BP-L90 battery.
Light Integration Camcorder is designed to power and control an optional Anton Bauer 50w Ultralight system.
|
| |
Technical Specifications
|
- Power Requirements: DC 12V +5.0V/-1.0V
- Power Consumption: 31.5W
- Continuous Operation Time: Approx. 125 mins (BP-L60A); 190 mins (BP-L90A)
- Weight: Approx. 7.0kg (inc battery, tape, lens). !
- Dimensions: 140(w) x 265(h) x 340(d) mm (w/o projections) SPECIFICATIONS (CAMERA SECTION) Image Device: 3-chip 2/3-inch, Power HAD 16:9/4:3 Widescreen IT CCD
- Picture Elements: 1038(h) x 594(v)
- Built-in Filters: 1: CLEAR, 2: 1/4 ND, 3: 1/16 ND, 4: 1/64 ND
- Built-in Filters: A: Cross, B: 3200K, C: 4300K, D: 6300K
- Lens Mount: Special bayonet mount
- Vertical Resolution: 480 TV lines (without EVS), 530 TV lines (with EVS)
- Minimum Illumination: Approx. 0.2lux (F1.4 lens + 48dB Turbo Gain)
- Smear Level: -120dB
- Sensitivity: F9 at 2000lx (typical)
- Shutter Speed: 1/60, 1/125, 1/250, 1/500, 1/1000, 1/2000 sec
- Video Signal-to-noise Ratio: 63dB (typical) SPECIFICATIONS (VTR SECTION)
- Record Time: Max. 40 mins
- Video Performance: K-factor (2T Pulse) - 1% or less
- Video Performance: Bandwidth - Y: 5.75MHz +/-0.5dB, R-Y/B-Y: 2.75MHz +/-0.5dB
- Audio Performance: Sampling Frequency / Quantization - 48kHz/20-bits per sample
- Audio Performance: Frequency response - 20Hz to 20kHz +0.5/-0.8 dB
- Audio Performance: Head Room - 20dB
- Audio Performance: Dynamic range (emphasis on) - More than 90dB
- Audio Performance: Distortion - Less than 0.08% (1kHz reference level, 48kHz) SPECIFICATIONS (INPUT/OUTPUT)
- Signal Inputs: Genlock video In BNC
- Signal Inputs: Time code In BNC
- Signal Inputs: Audio Ch 1/2 - XLR 3-pin x2, -60dBm/+4dBm selectable, high impedance, balanced
- Signal Outputs: Video Out - BNC (composite)
- Signal Outputs: Video Test Out BNC
- Signal Outputs: Time Code Out BNC
- Signal Outputs: Audio - XLR 5-pin (stereo)
- Other: DC In - XLR 4-pin
- Other: DC Out - 4-pin (DC 12V)
- Other: Earphone - Mini jack
- Other: Light out - 2-pin, DC 12V, max. 50W !"Other: Remote - 8-pin
|
| Prices exclude GST, Insurance and Freight where applicable. All prices in NZD. |
|
